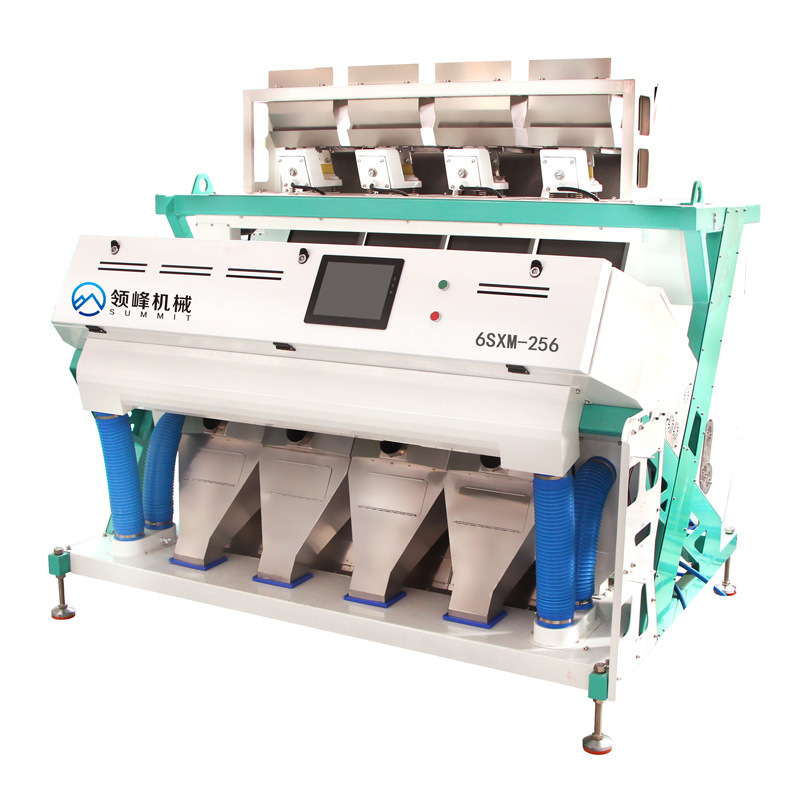

Food Processing Machinery Rice Sorting Machine with CCD Camera Full Color 5400+Pixel RGB Color Sorter National Patent Ejector

Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.

       In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the

valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

Product feature:

1. High-precision 2048 pixels high-speed line scan CCD, high-fidelity identifying and high-speed sorting;
2. Equipped with special light source to sort thousands of colors and identify small change of the color; good sorting of light green, light yellow, and small change of the same color;
3.Flat chute with high density ejecting system suitable for sorting grain with various size
4. High-quality image processing technology can distinguish 0.04mm 2 area;
5. Identify the fine defects of the material; provide the favorable solutions for materials which cannot be sorted by high-precision sorter or common color sorter;
6.High-speed processing core and flexible algorithm; 18 sorting modes meet various demands;
7.Reliable system design secure stable running of the machine;
8.Big and bright multi-color touch panel offer easy operation.

FAQ:

1.Q:How long about the guarantee period?
  One year. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
  L/C ,T/T is OK.
3.Q:How about engineers service oversea?
  Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
7. Which machine will work together with our color sorter which you can supply?
We can provide Air compressor, air tank, air filters, Cleaning brushes, etc.
