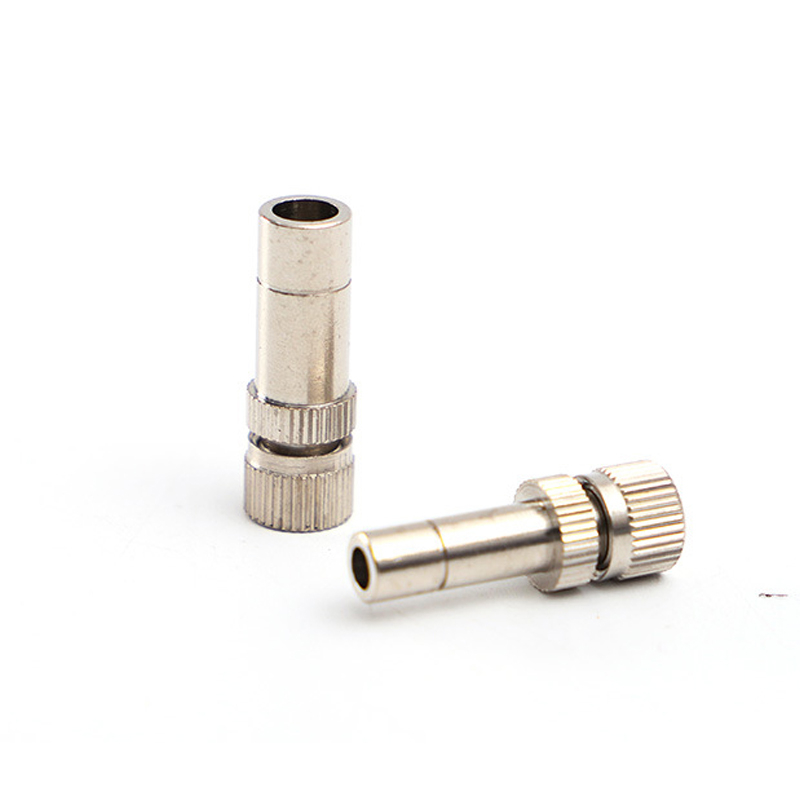

Low Pressure 6mm/8mm Quick Fit Type Fog Nozzle with Filter

Serial number	Interface size	Nozzle Size(mm)	Flow(L/m)
			3kg	4kg	7kg	10kg	15kg	18kg	35kg	50kg	70kg
1#	6mm/8mm	0.15						0.02	0.03	0.04	0.05
2#	6mm/8mm	0.2					0.05	0.06	0.07	0.08	0.09
3#	6mm/8mm	0.3				0.06	0.07	0.08	0.09	0.1	0.11
4#	6mm/8mm	0.4	0.07	0.09	0.12	0.15	0.18	0.2	0.22	0.25	0.28
5#	6mm/8mm	0.5	0.08	0.1	0.13	0.16	0.19	0.21	0.23	0.26	0.3
6#	6mm/8mm	0.6	0.09	0.12	0.14	0.17	0.2	0.23	0.27	0.32	0.38
7#	6mm/8mm	0.7	0.1	0.12	0.15	0.18	0.21	0.25	0.29	0.35	0.41
8#	6mm/8mm	0.8	0.11	0.13	0.16	0.19	0.22	0.26	0.3	0.36	0.48

Quantity(Pieces)	50-200	200-1000	>1000
Est. Time(days)	10	20	To be negotiated

Fine Mist Nozzle for Disinfection:

* Especially for disinfection application,Cooling,Dust removal;
* High quality durable fine mist nozzles and connectors;
* 0.1mm super fine mist;
* Anti-drip, no maintenance high performance spray system;
* Uniform and stable mist droplets;
* Easy and quick installation;
* Customized service availabl




Connectors dimensions:

Factory:


FAQ:
Q1: How fast can i get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.

Q2: How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost .But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.

Q3:How long is the Delivery Time for Spray Nozzles?
A: 7 days if only an extension of existing families.
Within 2 days can be shipped out if the nozzle we have in stock.

B:10 to 12 Days for nozzles that can be machined off bar stock
(7 extra days if no inventory bar stocks).

C: 25 to 35 Days for nozzles that require tooling (casting).
5 to 8 new nozzles can be developed simultaneously within 20 days.

Q4: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
