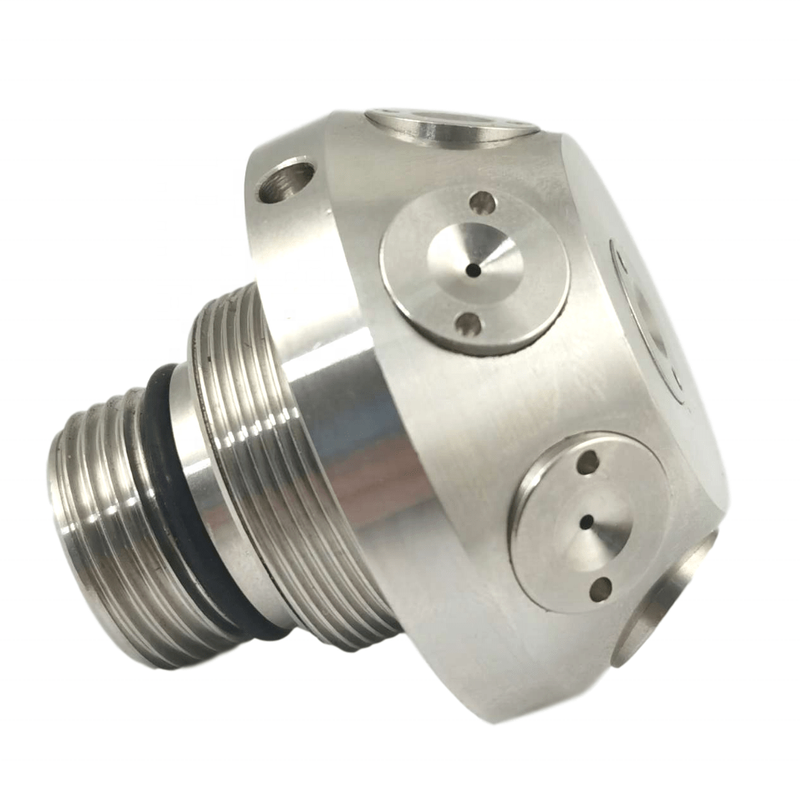

High Pressure Open / Close Type Water Spray Nozzles OEM

High-Pressure Water Mist System is composed of a pump unit, nozzle, valve unit, and stainless steel pipe, etc. The working pressure is set to 10Mpa. The system has a linkage to the automatic alarm system. It is responsive, stable in flow rate, uniform in water mist, easy for maintenance, has excellent extinguishment characteristics and price performance ratio.

Model: OEM
Brand: OEM
Price: ＄20-50
Weight: 180g
Material: Stainless Steel
Colour: silver
MOQ: 1

Availability:

Quantity:


Inquiry Add to Basket Made-in-China

Product Description

How To Place A Order?

Inquiry> Drawing> Quote> Sample making> Sample confirm> Produce> Delivery

1.Inquiry:Let us know your requirements or application.

2.Drawing:You can send us drawing or sample

3.Quote:we quote according to your requirements or our suggestions.

4.Sample making:We make the sample and send it to you

5.Sample confirm:You confirms the samples and places deposit for formal order.

6.Produce:we arrange the production.

7.Delivery:We deliver the products to you

Lead Time:

Quantity(Pieces)	1-50	51-300	>300
Est. Time(days)	7	14	To be negotiated

High Pressure Water Mist Nozzle Model list:

Serial number	Model number	Type	K Factor	working pressure(Mpa)	Connector thread(Custom)	Number of nozzles
Serial number	Model number	Type	K Factor	working pressure(Mpa)	Connector thread(Custom)	Number of nozzles
1	XSW-TQ0.3/10	Open/Closed	0.3	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
2	XSW-TQ0.5/10	Open/Closed	0.5	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
3	XSW-T0.7/10	Open/Closed	0.7	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
4	XSW-T0.8/10	Open/Closed	0.8	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
5	XSW-T0.9/10	Open/Closed	0.9	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
6	XSW-T1.0/10	Open/Closed	1.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
7	XSW-T1.2/10	Open/Closed	1.2	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
8	XSW-T1.5/10	Open/Closed	1.5	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
9	XSW-T1.7/10	Open/Closed	1.7	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
10	XSW-T2.0/10	Open/Closed	2.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
11	XSW-T2.5/8	Open/Closed	2.5	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
12	XSW-T3.0/8	Open/Closed	3.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
13	XSW-T3.5/8	Open/Closed	3.5	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
14	XSW-T4.0/5	Open/Closed	4.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
15	XSW-T4.5/5	Open/Closed	4.5	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
16	XSW-T5.0/5	Open/Closed	5.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs
17	XSW-T5.5/5	Open/Closed	5.0	10Mpa-14Mpa	M18*1.5/G1/2	5/6/7Pcs

1. How long does it take to receive samples?
a) Pattern:30-45days after order
b) Sample:30days after pattern finishing.
c) The lead time is the general production period and does not include the transportation time.

2. Can we visit the factory to conduct an audit?
Yes, you are welcome to visit our partner factory by prior agreement.

Introduction
High-Pressure Water Mist System is composed of a pump unit, nozzle, valve unit, and stainless steel pipe, etc. The working pressure is set to 10Mpa. The system has a linkage to the automatic alarm system. It is responsive, stable in flow rate, uniform in water mist, easy for maintenance, has excellent extinguishment characteristics and price performance ratio.
Design Features

Very fine droplet size, Class I water mist
Major parts include nozzle body, nozzle tips, whirl core, spray orifice, strainer mesh
High spray momentum, the good ability for penetration of fire
Very fine atomizing droplets, Good dispersion effect
Fog-like droplets remain in the air for a long time

Spray Characteristics
